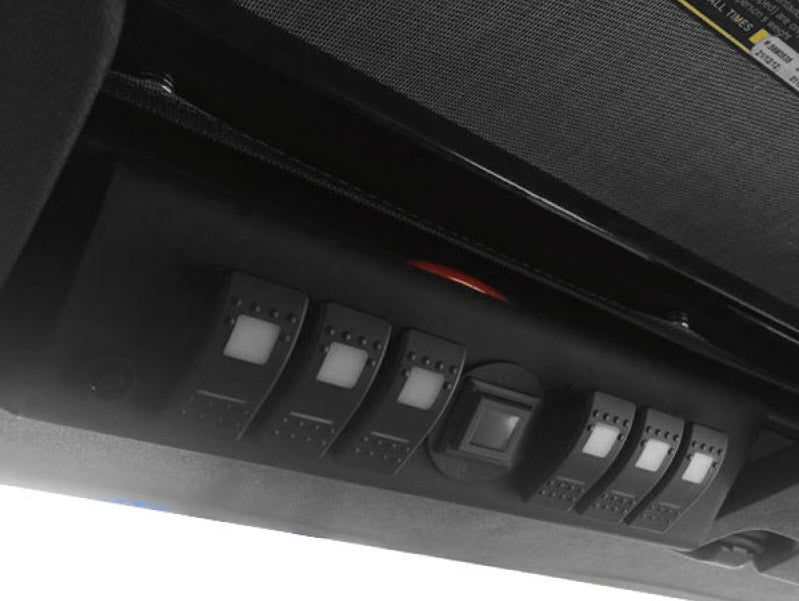

JK 6 Switch Panel with Dual Lit LED Red Switches W/Genesis Adapter 09-18 Wrangler JK (G Screen Not Included)

JK 6 Switch Panel with dual lit LED Red switches for 2009-2018 JK Wranglers W/Genesis Adapter (G Screen not included).

This panel includes the new Genesis adapter to allow you to install the Genesis G Screen.

Each system includes the following:

• All required mounting brackets and hardware.
• System will come pre-wired ready to install.
• G Screen not included.

Included:

• Switch panel, six dual lit LED Red switches (installed and pre-wired)
• Two piece Wire Harness set with 8 multi-color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch.
• Not Recommended for custom Rockers. Switches do not have a lower pilot light.
• All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
• The Source 6 Circuit power distribution system includes:
• 12 position terminal block for accessory attachment
• 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
• 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
• 6 Diodes to protect sensitive accessories such as LED lights from field collapse
• Inline 50 amp manual resetting circuit breaker
• 8 gauge power leads with crimped and soldered terminal for connection to the battery
• LVCO can be disabled
• Mounting bracket for Jeep Wranglers
