TJ 6 Switch Panel with Dual Lit Blue LED W/Air Gauge 03-06 Wrangler TJ

sPOD
510-03LT-LED-B
LIGHTING
$570.00
$570.00

TJ 6 Switch Panel with Dual Lit Blue LED W/Air Gauge 03-06 Wrangler TJ

TJ 6 Switch Panel with Dual Lit Blue LED switches W/Air Gauge (Note, this air gauge is NOT backlit) 03-06 Wrangler TJ. Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.2VDC and cuts-back in at 12.8VDC so there is enough juice to start your vehicle in case you left an accessory on!

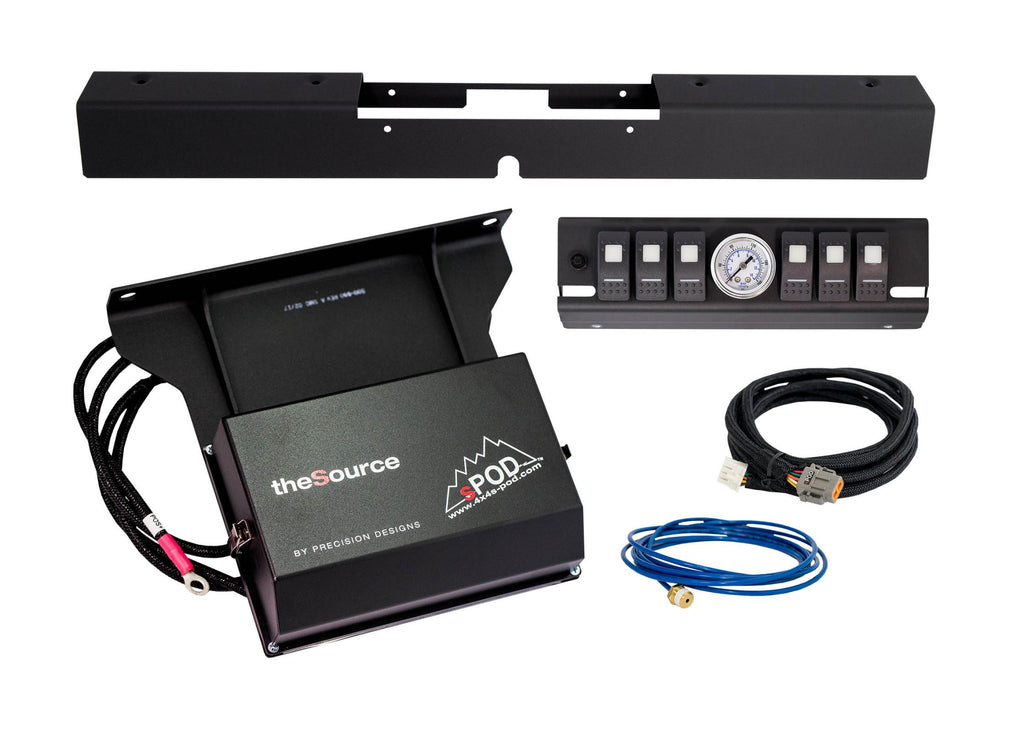

Each system includes the following:

  • All required mounting brackets and hardware. System will come pre-wired ready to install.

Included:

  • Switch panel, six Dual Lit Blue LED switches (installed and pre-wired), two piece Wire Harness set with 8 multi color leads utilizing 18 gauge wires.
  • Each end has an automotive connector made by Deutsch.
  • Complete Air Gauge kit 0-200 psi Air Gauge w/Quick Release Camozzi fittings and 10 foot of high pressure connection line.
  • Not Recommend for Custom Rockers. Switches do not have lower pilot light.
  • All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
  • The Source 6 Circuit power distribution system includes:
  • 12 position terminal block for accessory attachment
  • 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
  • 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
  • 6 Diodes to protect sensitive accessories such as LED lights from field collapse
  • Inline 50amp manual resetting circuit breaker
  • 8 gauge power leads with crimped and soldered terminal for connection to the battery
  • Fuse for LVCO which can be removed to bypass the LVCO
  • Mounting bracket for Jeep Wranglers
