TJ 6 Switch Panel with Dual Lit Green LED W/Air Gauge 03-06 Wrangler TJ

TJ 6 Switch Panel with Dual Lit Green LED W/Air Gauge (Note, this air gauge is NOT backlit) 03-06 Wrangler TJ. Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.2VDC and cuts-back in at 12.8VDC so there is enough juice to start your vehicle in case you left an accessory on!

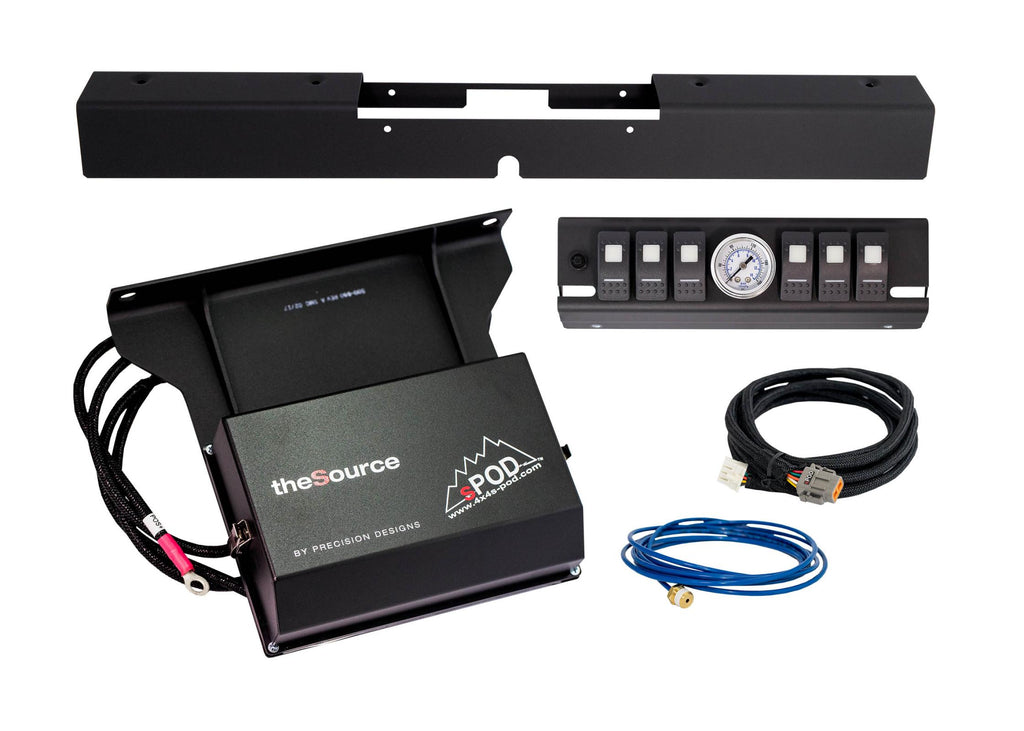

Each system includes the following:

• All required mounting brackets and hardware. System will come pre-wired ready to install.

Included:

• Switch panel, six Dual Lit Green switches (installed and pre-wired), two piece Wire Harness set with 8 multi color leads utilizing 18 gauge wires.
• Each end has an automotive connector made by Deutsch.
• Complete Air Gauge kit 0-200 psi Air Gauge w/Quick Release Camozzi fittings and 10 foot of high pressure connection line.
• Not Recommend for Custom Rockers. Switches do not have lower pilot light.
• All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
• The Source 6 Circuit power distribution system includes:
• 12 position terminal block for accessory attachment
• 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
• 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
• 6 Diodes to protect sensitive accessories such as LED lights from field collapse
• Inline 50amp manual resetting circuit breaker
• 8 gauge power leads with crimped and soldered terminal for connection to the battery
• Fuse for LVCO which can be removed to bypass the LVCO
• Mounting bracket for Jeep Wranglers
